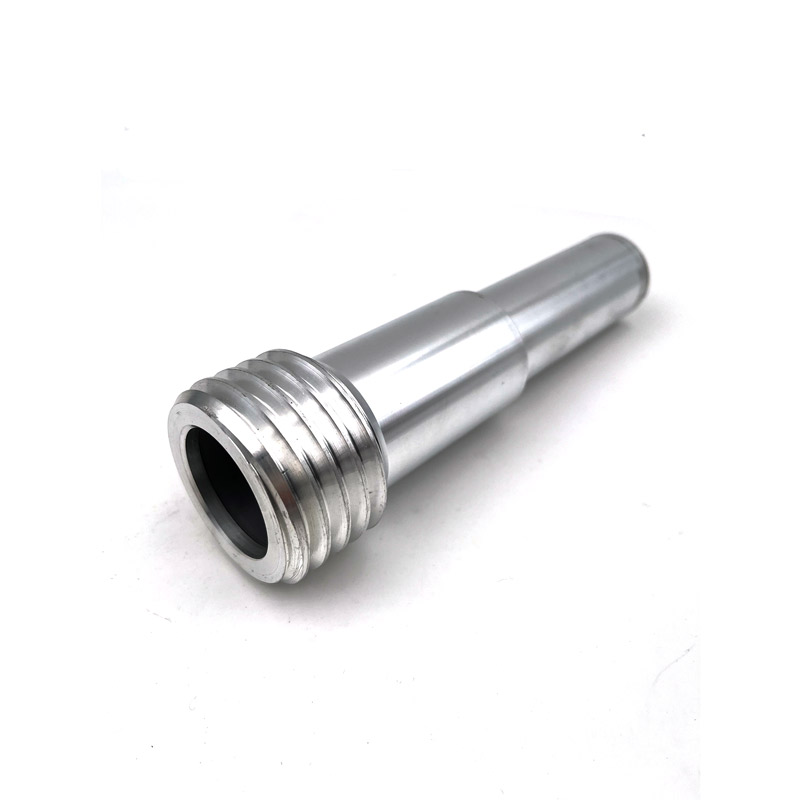

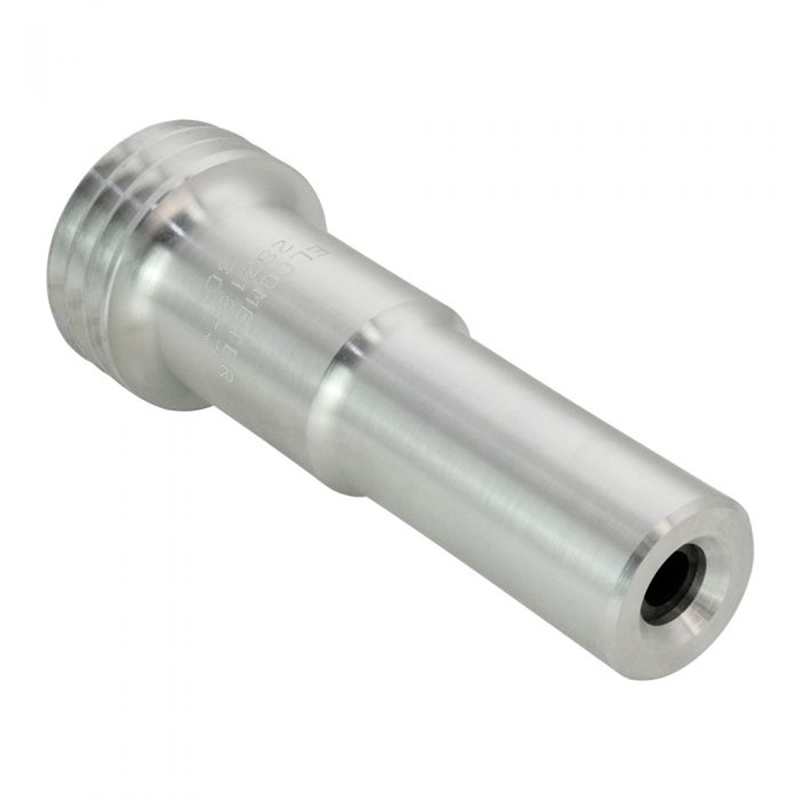

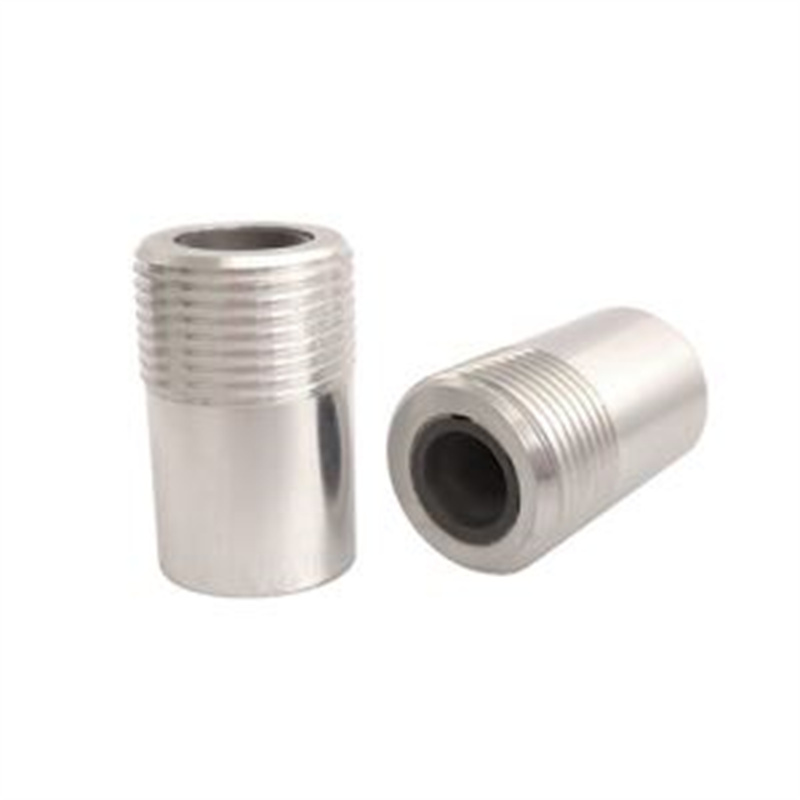

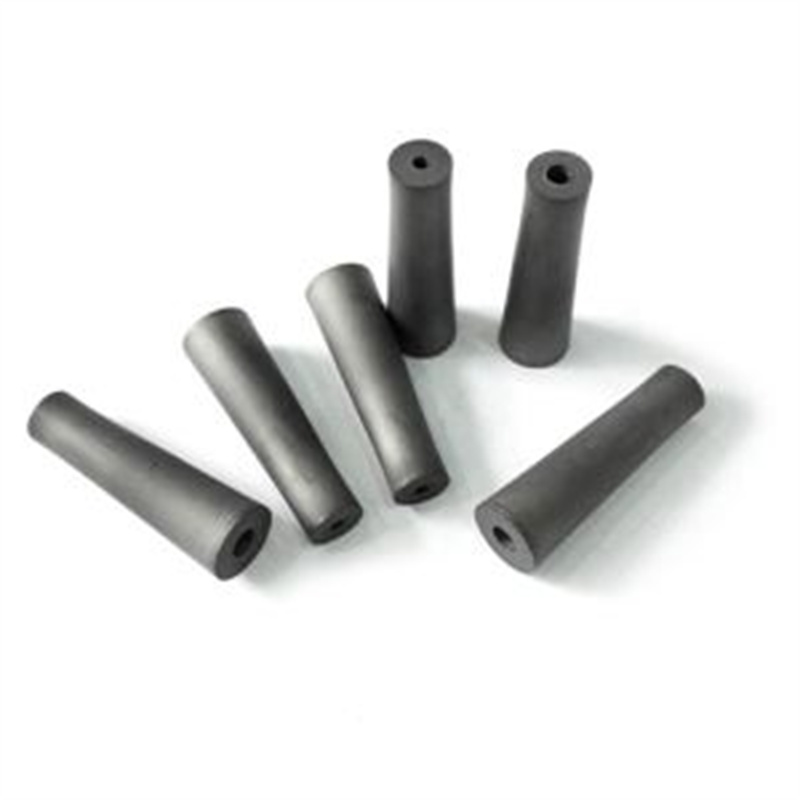

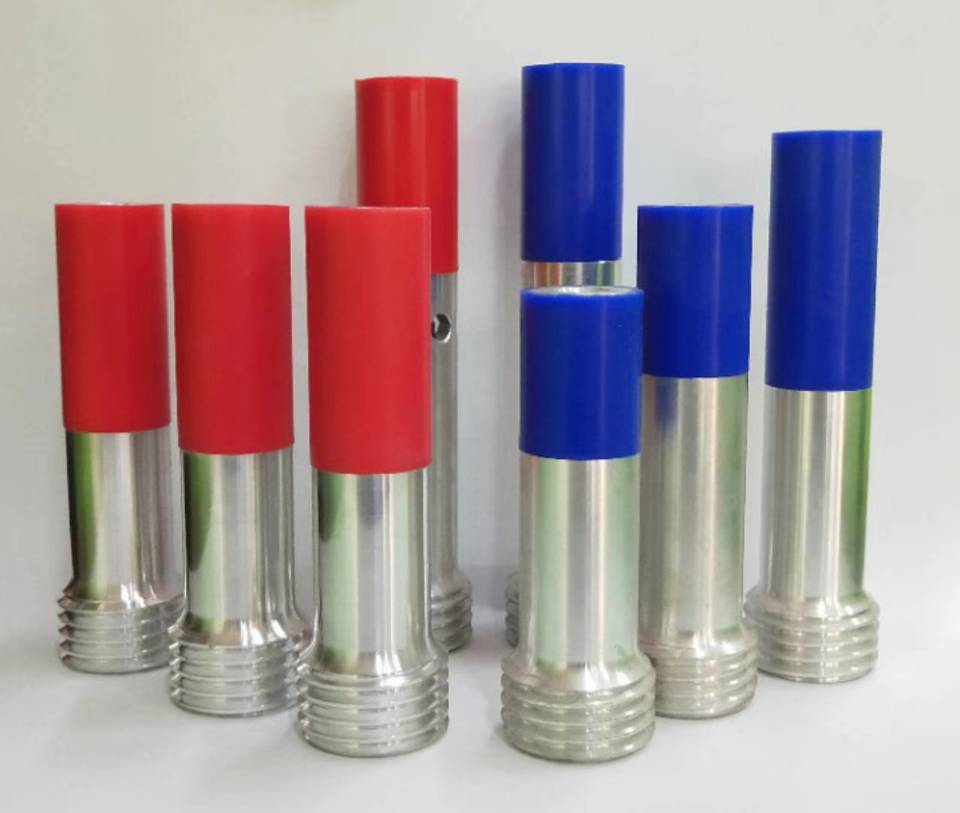

Carbide nozzle is mainly applied to the nozzle for mechanical equipment operation, such as cold spraying, thermal spraying, vacuum coating, sandblasting, spray, liquid injection,
laser processing, etc. Carbide nozzle has good physical stability, high hardness, high wear resistant and corrosion resistant,which can meet the requirements of jet spray very well,
so it is widely applied in aerospace, marine engineering and advanced manufacturing. , rail transit and other fields.
| Grades | ISO Grade | Chemical Composition | Density (g/cm3) | HRA | T.R.S (N/mm2) |
| YG4C | 96%WC, 4%Co | 15.00 | 89.5 | 1800 | |
| YG6 | K20 | 94%WC, 6%Co | 14.80 | 89.5 | 1700 |
| YG8 | K20-K30 | 92%WC, 8%Co | 14.70 | 88.5 | 2300 |
| YG8C | K30 | 92%WC, coarse | 14.70 | 88.0 | 2300 |
| YG9C | YK20 | 94%WC, 6%Co | 14.45 | 87.0 | 2400 |
| YG11C | 89%WC, 11%Co | 14.40 | 86.5 | 2450 | |
| YG13C | 87%WC, 13%Co | 14.30 | 86.0 | 2500 | |
| YG15 | K40 | 85%WC, 15%Co | 14.00 | 86.5 | 2500 |
| YG16 | 84%WC, 16%Co | 14.10-14.30 | 87.5 | 2400 | |
| YG20 | 80%WC, 20%Co | 13.40-13.70 | 85.0 | 2254 |
